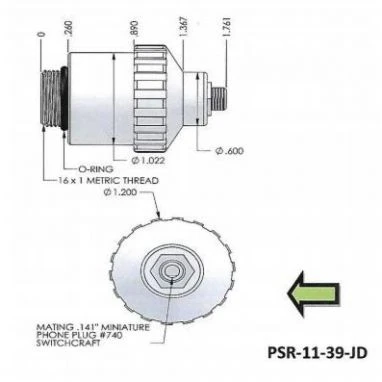

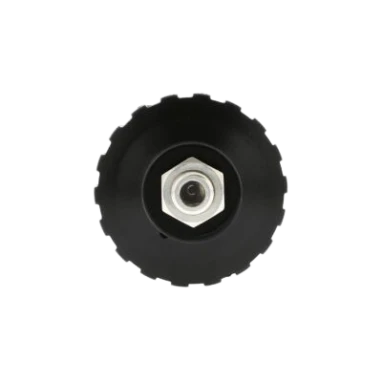

PSR-11-39-JD Replacement Sensor

Replacement for De-Ox, Dive Rite, DiveTek, El Chepo, Expedition, MSA Mini Ox, Spectrum, and more
PSR-11-39-JD

OEM Equipment:
De-Ox
Dive Rite VTI
Dive Rite VTI-580
DiveTek OzAnalyzer One
El Chepo I & II
Expedition-X
MSA Mini Ox 1 406931
Spectrum O2 Analyzer
Teledyne AD300/MD300
Vandagraph VN202
IT Gambert D-01 Sensor
Maxtec MAX-13 Sensor
Maxtec MAX-13-250 Sensor
MSA 406931 Sensor
Teledyne R-17D Sensor
Vascular Technology 100580 Sensor
Vandagraph R-17VAN Sensor

Advanced galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30″ of water column pressure test and stability at 100% oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”

Technical Specifications
Measuring Range 0-100%
Accuracy 1 +/-2% of Full Scale
Signal Output 2 9-14 mV
Linearity +/-2% of Full Scale
Response T90 6 sec
Temp Coefficient Compensated
Operating Temp 0 to 45°C
Recommended Storage 3 0 to 25°C
Qualified at 1.8 ATA
Shelf Life 4 6 months
Humidity Non-condensing 0-99% RH
Expected Life 42 months
Warranty 5 12 months
Electrical Conn 3.5 Phono Jack

* Conditions – Specification validated during design and in pursuit of improvement are subject to change without notice
At constant temperature and pressure.
In air (20.9% oxygen) at 25°C and 1 atm.
Sensor may be stored up to 55°C on an intermittent basis, for example, during transportation.
In original Package at 25°C and 1 atm.
Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by Analytical Industries Inc. is limited to replacing the sensor. Analytical Industries In. will not be liable for buyer’s negligence, misapplication, abuse or accident.
