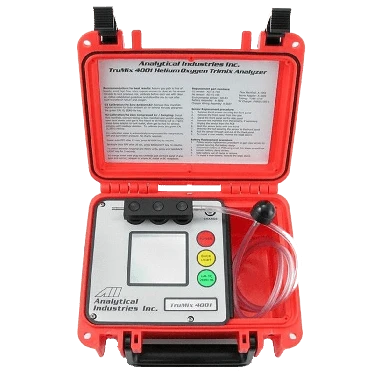

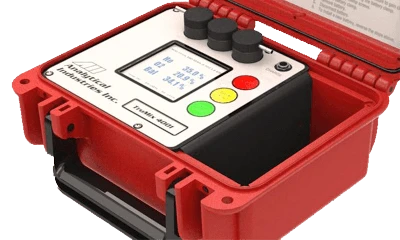

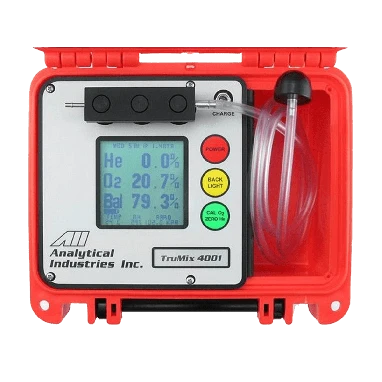

Portable TruMix Trimix Analyzer

A portable Trimix Analyzer designed to ensure the correct mix of helium, oxygen and nitrogen for technical diving. This easy-to-operate diving instrument analyzes gas mixes, automatically correcting for environmental conditions and eliminating the risk of errors from manual calculations. It has a large backlit LCD display that is easily read even in low light conditions, and which provides additional information such as a Maximum Operating Depth calculation. The features make the Trimix 4001 one of the best nitrox analyzers on the market for diving oxygen analyzers.

Displays O2, He and balance gas (0-100%)
Automatically adjusts for environmental conditions to avoid risk of nitrogen narcosis during dives down to 46 meters
Includes temperature, barometric pressure and RH sensors
Long life battery with 16 hours of use, with two-hour charge time
15-minute auto-off feature to save battery
Watertight, IP65 enclosure

Measurement range 0-100% Helium, 0-100% Oxygen
Accuracy ±2% of range at constant conditions
Response time ±2% of range at constant conditions
Sensor model He: AII-41-100, O2: AII-11-75D
Sensor life He: 10 years, O2: 60 months in air
Calibration interval Prior to use with ambient air or a known concentration of oxygen
Inlet pressure < 5 psig with 1-2 SCFH or open tank valve slowly until hissing sound Ambient pressure (extract sample with optional integral pump)
Display Backlight LCD 6.4 x 6.4cm (2.5 x 2.5”)
Dimensions 221 x 190.5 x 96.5mm (8.7 x 7.5 x 3.8″)
Ingress protection Watertight case (when closed) IP65
Compensation Temperature, barometric pressure, relative humidity
Storage temperature 0°C to 50°C (32°F to 112°F) 50°C intermittently
Operating temperature Operating temperature
Power Rechargeable battery, 9 V DC from 110/220 V AC (can charge battery in 2 hours). Optional 12 V DC car charger.
