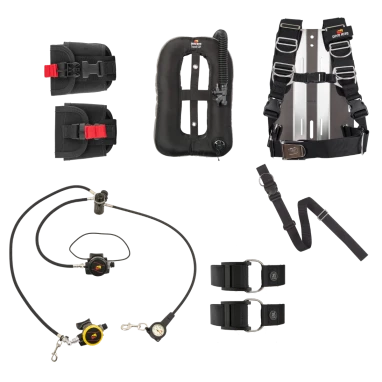

Dive Rite BP/W And Regulator Package

The XT Lite backplate design is based on the original Dive Rite backplates produced since 1984. The lightweight design has evolved to include new features and ergonomics for the modern diver. Laser cut from a thin 14 gauge low carbon, rust resistant 316L stainless steel, the unique shape contours the diver’s back while generously rounded corners prevent the plate from digging in or damaging exposure suits. Additional internal cutouts further reduce weight and add to the plate’s unique look while still maintaining the support needed for the heaviest double cylinder configurations. All XT Lite plates are CNC deburred guaranteeing there are no rough or sharp edges that could potentially damage harness webbing. They are then electropolished to a mirror finish and laser engraved to ensure that they look as good as they perform.

The XT backplate is set up with 11″ (27.9cm) on-center mounting holes to accommodate standard double tank bolt kits, including two hole positions for the upper bolt providing user adjustability of tank height. Two sets of 2″ slots along the center channel allow divers to weave cam straps onto the backplate for single tank diving use without the need for a single tank adapter. Two pairs of holes on side tabs are positioned for use with bungees to be able to sidemount stage bottles. A series of additional holes along the outer edges of the backplate provides different options for mounting lights, pony and suit inflation bottles, lift bags, and other accessories.

2” harness webbing slots are used throughout to accommodate either a Basic, Deluxe or Transplate style harness. 2″ (50mm) and 1″ (25mm) slots at the bottom center of the plate allow for any crotch strap up to 2″ (50mm) in width to be used.

Weighing in at 2.61 lbs (1.18 kg), lightweight stainless steel plates are an ideal option for divers who do not need additional ballast weight on their rigs.

14 Gauge low carbon 316L Stainless Steel
Laser cut, CNC deburred edges
Electropolished and Laser Engraved
2.61 lbs (1.18kg)
5″ (26.7cm)(widest point) x 15″ (39.4cm)
25″ (3.2cm) depth (with contour)
In-water buoyancy: -2.5 lbs (-1.13 kg)

Based on the original Dive Rite backplates produced since 1984, the XT Backplate design has evolved to include new features and ergonomics for the modern diver. Laser cut from 10 gauge low carbon, rust resistant 316L stainless steel, the unique shape contours the diver’s back while generously rounded corners prevent the plate from digging in or damaging exposure suits. All XT plates are individually finished by hand guaranteeing there are no rough or sharp edges that could potentially damage harness webbing. They are then electropolished to a mirror finish and laser engraved to ensure that they look as good as they perform.

The XT backplate is set up with 11″ (27.9cm) on-center mounting holes to accommodate standard double tank bolt kits, including two hole positions for the upper bolt providing user adjustability of tank height. Two sets of 2″ slots along the center channel allow divers to weave cam straps onto the backplate for single tank diving use without the need for a single tank adapter. Two pairs of holes on side tabs are positioned for use with bungees to be able to sidemount stage bottles. A series of additional holes along the outer edges of the backplate provides different options for mounting lights, pony and suit inflation bottles, lift bags, and other accessories.

2” harness webbing slots are used throughout to accommodate either a Basic, Deluxe or Transplate style harness. 2″ (50mm) and 1″ (25mm) slots at the bottom center of the plate allow for any crotch strap up to 2″ (50mm) in width to be used.

Weighing in at 5.51 lbs (2.50 kg), stainless steel plates are a popular option for divers looking for a more even distribution of ballast weight.

10 Gauge low carbon 316L Stainless Steel
Laser cut, hand finished edges
Electropolished and Laser Engraved
5.51 lbs (2.50kg)
10.5″ (26.7cm)(widest point) x 15″ (39.4cm)
1.25″ (3.2cm) depth (with contour)
In-water buoyancy: -5.5 lbs (-2.5 kg)

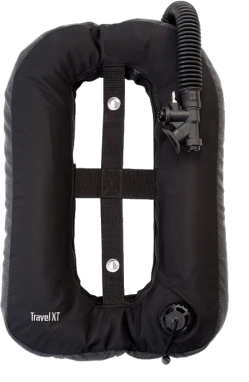

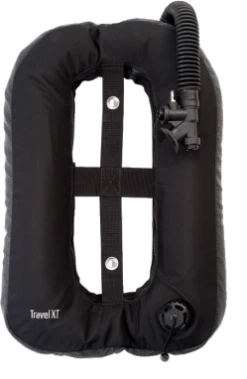

•  Travel wing has 25lbs of lift. The EXP wings are built with a cordura bladder cover

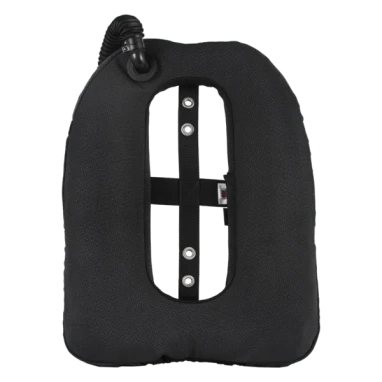

•  Voyager wing has 35lbs of lift. The EXP wings are built with a cordura bladder cover.

•  Travel wing has 25lbs of lift. The XT wings are built with superfabric and are nearly indestructible

•  Voyager wing has 35lbs of lift. The XT Wings are built with superfabric and are nearly indestructible.

•  Rec wing has 45lbs of lift. The EXP wings are built with a cordura bladder cover.

•  Rec XT wing has 45lbs of lift and is built with superfabric, making it nearly indestructible.

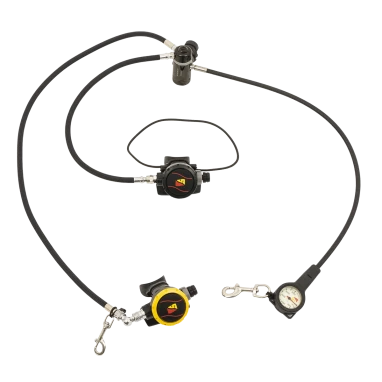

The XT Advanced Open Water Regulator Package draws from our technical roots, for a regulator setup that any diver can appreciate. The XT Advanced Open Water Regulator Package consists of our XT1 High Performance First Stage, a matched set of XT2 Balanced Second Stages, and a Mini Tech 2″ SPG. Along with all of the main components, accessories such as clips and necklaces are included.

With its optimal hose routing, there are no dangling hoses to get snagged on the dive. The primary second stage is routed under the divers arm on a 40″ flex hose with an angled adapter. This routing keeps the hose from flaring out and the longer hose allows for comfortable air sharing in an emergency situation. The backup second stage is on a 22″ flex hose with necklace to be quickly accessed if needed. The high quality Mini Tech 2″ Brass SPG is on a 30″ flex hose with boot and stainless clip to be attached on the waist or chest D-ring for easy viewing.

For transporting your XT Advanced Open Water Regulator Package to and from the dive site, a carrying bag is included.

Available in Yoke or DIN.

TECHNICAL DETAILS
XT1 First Stage
XT2 Second Stage
XT2 Second Stage
22-inch LP hose
Right angle regulator adapter
Regulator necklace
2-inch SPG with 32-inch hose
Small swivel bolt snap
Hose clip retainer
Regulator Bag

The XT Advanced Open Water Regulator Package draws from our technical roots, for a regulator setup that any diver can appreciate. The XT Advanced Open Water Regulator Package consists of our XT1 High Performance Fixed Turret First Stage, a matched set of XT4 Balanced Second Stages, and a Mini Tech 2″ SPG. Along with all of the main components, accessories such as clips and necklaces are included.

The XT1 First Stage’s fixed turret design and flat LP and HP ports allow hoses to run straight out from the side of the regulator for more streamlined hose routing. The primary second stage is routed under the divers arm on a 40″ flex hose with an angled adapter. This routing keeps the hose from flaring out and the longer hose allows for comfortable air sharing in an emergency situation. The backup second stage is on a 22″ flex hose with necklace to be quickly accessed if needed. The high quality Mini Tech 2″ Brass SPG is on a 30″ flex hose with boot and stainless clip to be attached on the waist or chest D-ring for easy viewing.

For transporting your XT Advanced Open Water Regulator Package to and from the dive site, a carrying bag is included.

XT1 First Stage
2 XT4 Second Stage
40-inch LP hose
22-inch LP hose
Right angle regulator adapter
Regulator necklace
2-inch SPG with 32-inch hose
Small swivel bolt snap
Hose clip retainer
Regulator Bag
